1.Double gravity table, Better selection effect. 2.Environmental, Enclosed structure and can purify air more effectively 3.Energy saving, Reduce the loss of wind energy, Reduce power consumption. 4.St

case

Your Position : Home > case

Products list

inquery

hot products

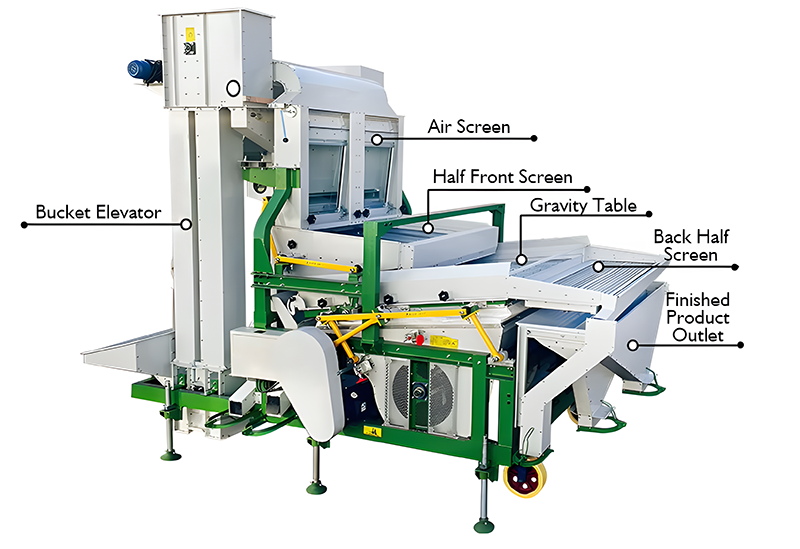

aohua-5xfz-40z-double-gravity-table-cleaner

2025-04-25

The machine separates materials based on density differences using a combination of vibration, airflow, and gravity:

1.Feeding: Raw material enters the upper deck via a vibrating feeder.

2.Stratification:

The vibrating deck creates a fluidized layer, causing heavier particles (good grains/seeds) to settle downward.

Lighter impurities (dust, husks) float to the top.

3.Airflow Separation: A fan blows air upward, carrying away lightweight debris.

4.Double-Deck Sorting:

First Deck: Removes large impurities (stones, clods).

Second Deck: Fine-tunes separation for high-purity output.

5.Discharge:

Clean grains exit from one side.

Impurities are collected separately.

Specification：

Name	Model	Sieve Surface Area (MM)	Power (KW)	Capacity (T/H)	Weight (T)	Overall Size L x W x H (mm)
Double Gravity Table Cleaner	5XFZ-40Z	2000 x 1700	20.55	40-50	3.3	4500 x 2560 x 3550
