Horizontal Pellet Machine

description

It is used to efficiently process various biomass raw materials such as logs, sawdust, wood chips, dissolution, feed, hay, waste paper, waste furniture, etc. into 6/8/ 10/12mm or other size particles. It adopts high-efficiency horizontal ring die design, using chinese famous brand motor and stainless steel chassis.

- The all-stainless steel feeder, configured with original imported frequency converter to control feeding uniformly and accurately.

- Monitoring system is equipped, solving the problem of high temperature hazard in the pelleting chamber caused by the improper operation thus efficiently avoiding the danger of bursting and fire.

- The components is made by international advanced manufacturing craft and designed according to the characteristics of the material from the customers, prolonging the service time of the equipment.

- The ring die of feed machine with quick-release coupling reduces the time of replacing the ring die and improves the production efficiency.

- Double-motor drive. The high strength SPB narrow V-belt drive transmit with stability and reliability but with low noise.

- The horizontal ring die pelleting mill is configured with many kinds of ring dies with different aperture diameters and compression ratio, the customers can choose according to their needs.



Name	Horizontal pellet machine
Model	AH-420MX	AH-508MX	AH-678MX	AH-768MX
Power(KW)	90KW	132/160KW	185/200KW	220/250KW
Capacity T/H)	0.8-1.2T/H	1.5-2T/H	2.5-3.5T/H	3-4T/H
Pellet Size	6-12mm	6-12mm	6-12mm	6-12mm
Die Diameter	420mm	508mm	678mm	768mm
Raw Materials	Sawdusts,staw,grass etc	Sawdusts,staw,grass etc	Sawdusts,staw,grass etc	Sawdusts,staw,grass etc

Differ from the vertical ring die pellet mill, the horizontal ring die pellet mill adopts the feeding auger to feed the material into the pelleting chamber through the stock bin. The material begin to be soft in the sealed pelleting chamber, and under the great extrusion between rotating ring die in a high speed and the roller, the soft material is pressed into the holes uniformly distributed on the die. After that, the formed cylindrical solid body out of the holes will be cut by the knife, thus discharged through the export hole.

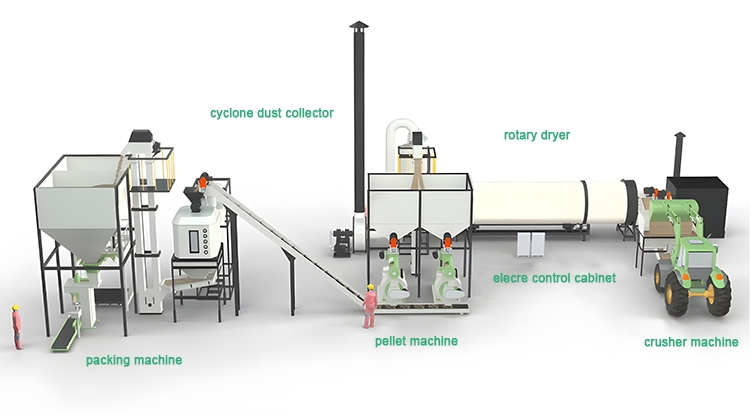

Various raw materials can be processed into biomass pellets, including wood and wood waste,agricultural residues such as straw and corn corb, energy crops like switch grass , and organic industrial and urban waste. These materials are typically processed into pellets through methods such as drying, crushing, and pelletizing to create a dense and uniform fuel source for heating and electricity generation.

1. Inner packing: Plastic film
2. Outside packing: Container/Wooden box
3. Shipping: By sea in QINGDAO port or according to your demand
