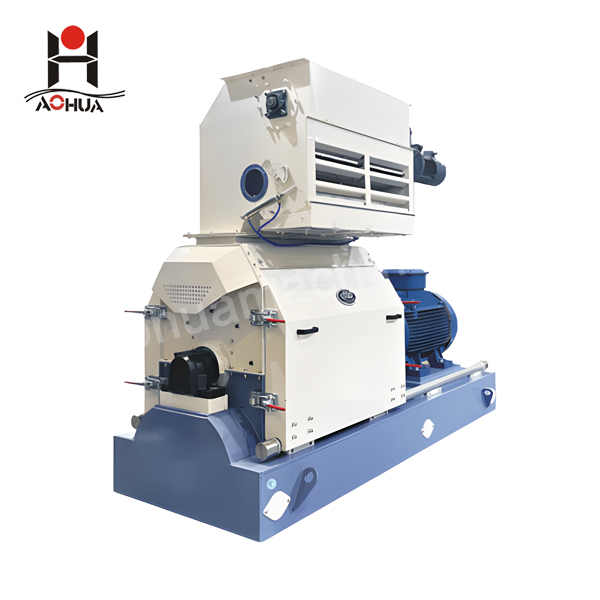

SFSP Series Hammer Mill

description



High capacity and low energy consumption
Optimize the rotor structure, large diameter rotor effectively adjust the direction of air flow in the crushing room.So that the material is in the effective crushing zone, forget the output, reduce energy consumption, grinding atthe beginning of acceleration is equipped with wear-resistant tooth plate, the bottom of the U-shaped secondstrike groove, so that the material punching more thoroughly.Staggered arrangement of the hammer, increase the effective screening area, make the hammer wear uniform.
Prolong the life of the hammer.
Multi-chamber crushing chamber can reduce screen loss, flexible adjustment of particle size;Encryption hammer design,suitable for coarse and fine grinding of raw materials, grinding particle size uniform,micro-grinding performance to a new high.
Ultra-stable and durable
The overall finishing miing base has small vibration, stable operation, and the coin can be in an upright stateunder working condition.
High precision dynamic balance detection rotor, equipment vibration is small, low noise,The hammer is made of special alloy steel and hardened by suspended tungsten carbide surface to achieve
higher strength and durability.Test machine by machine. runnina time ) 45min, stability is better than the national standard, vibration speed
up to 2-4mm/s (national standard ≤ 16mm/s),The new snake-like spring coupling (plum coupling) has good damping performance, large variable load bearingcapacity.Large displacement compensation space.Reliable operation，and effectively avoid bearing heatingphenomenon.
Easy to operate
Movable operation door, convenient maintenance.
Multi-stage linkage press screen mechanism makes it more convenient to change the screen;Optimized pin shaft and pin sleeve structure, more convenient replacement of hammer,A full range of linkage control system, always protect the safe operation of equipment.

Product Model	Main Engine Power(KW)	Feeder Power	Rotor Diameter(mm)	Number Of Hammer	Capacity(t/h)Φ1.0mm	Capacity(t/h)Φ2.0mm
SFSP-66*100	110/132/160	2.2	660	120	8-15	14-24
SFSP-66*150	200/250/315	3.0	660	180	15-20	30-45
