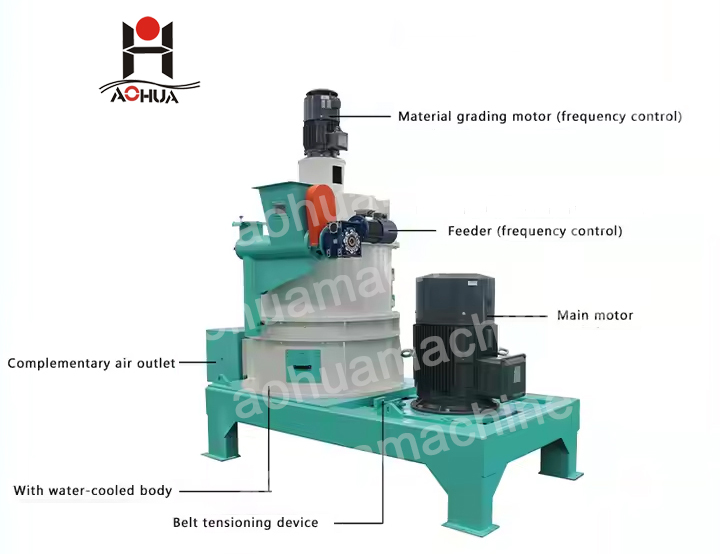

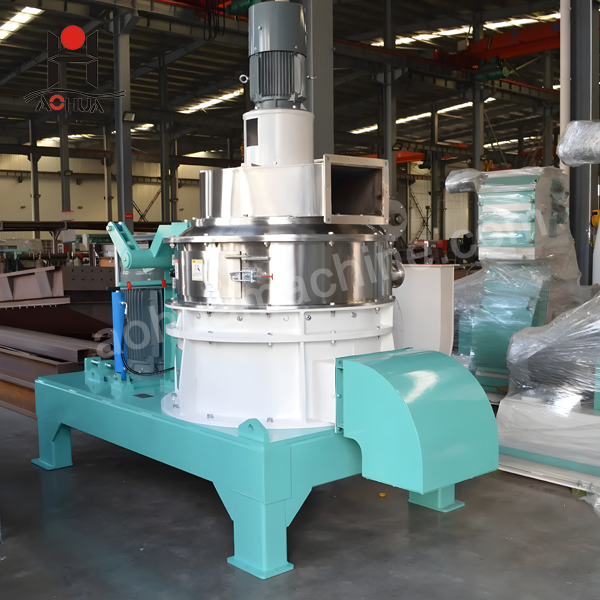

Ultrafine pulverizer

description



1. From experimental to production machines, process parameters can be scaled up in equal proportions;
2. The special design of the angle between the crushing chamber and the feeding tube ensures that the product can be crushed in one process to obtain a very good particle size distribution;
3. The contact area between the sample and the equipment is small, which can get a high yield;
4. Pneumatic control system, the host does not need any power supply, to meet the explosion-proof requirements;
5. Multi-sheath type filter bag powder capture system, anti-static polyester material filter bag, manual or pneumatic bag shaking system.

Model	Capacity(t/h)	rotor diameter(mm)	speed(rpm)	weight
SFWL82	1.2-2.2	820	3110	4650
SFWL110	1.5-2.8	1100	2340	4810
SFWL130	2.2-3.6	1300	1980	5350
