description

The belt filter (sometimes called a belt press filter, or belt filter press) is an industrial machine, used for solid/liquid separation processes, particularly the dewatering of sludge in the chemical industry, mining, food processing and water treatment. The process of filtration is primarily obtained by passing a pair of filtering belts through a system of rollers. The system takes a sludge as a feed, and separates it into a filtrate and a solid cake.

- High-pressure dehydration
-Optimal press roller arrangement

-Outstanding dehydration efficiency
-Large Diameter Pressure Roller

-Perforated roller
The device is equipped with two belts. There is a long gravity dehydration area which can improve the dehydration effect and lower the cost by reducing the usage of chemicals.

Model	AH750P3	AH1000P3	AH1500P3	AH2000P3
Dimension(mm)	520016502300	520019002300	520024002400	520029002400
Main drive power(kw)	3	3	5.5	7.5
Feeder power(kw)	0.75	0.75	1.1	1.5
Cleaning pump(kw)	2.2	3	4	5.5
Cleaning pump flow(m3/h)	4	5	9	12
Weight(kg)	4000	4000	6000	8000
Compressed air pressure	0.3-0.8Mpa
Air consumption	0.1m³/h
Total Power	8	9	13	17
Belt speed	2----8m/min
Bandwidth(mm)	750	1000	1500	2000
Feeder height(mm)	1000	1000	1100	1200
Capacity(m3/h)	3---4	4---5	5---8	8---12
Final moisture	45----60%
Note:AH on behalf of AO HUA roller press, 750-2000 on behaf of Bandwidth,P on behalf of roller, 3 on behalf of the number of the rollers.

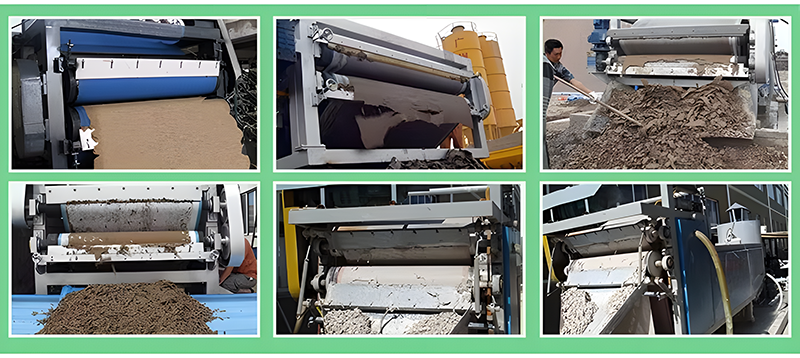

The raw material, passing through the distributor, is pre-pressed and dehydrated in the wedge area, and then further squeezed and dehydrated in the large area low pressure drainage area composed of porous drainage rollers. Then, the raw material with a certain degree of dryness is pressed by three sets of high-intensity squeezing, i.e. roller I, roller II and roller III. Then the raw material with extremely low water content is pressed and dehydrated again by the mesh belt at the discharge port. Finally the dry filter cake is ·discharged. It basically meets the requirements of major varieties for moisture content, and the entire process is subject to extrusion and shear forces.

1. Inner packing: Plastic film
2. Outside packing: Container/Wooden box
3. Shipping: By sea in QINGDAO port or according to your demand
