Combined Oil Press

Product Description
The series automatic temperature controlled combined oil presses made by our company are suitable for squeezing vegetable oil from rapeseed, cottonseed, soybean, shelled peanut, flax seed, tung oil seed, sunflower seed and palm kernel, etc

We're here to help: Easy ways to get the answers you need.

Share With:

inquery

  • Tel:+86 16627863527
  • Fax:+86 0371 26811388
  • Email:andy@aohuamachine.com
  • Add:Chenliu, Xiangfu Distirct, Kaifeng City, China
contact us

hot products

  • Maize Mill Equipment

  • Rice Mill Machine

  • Plansifter

  • Double Bins Plansifter

  • 1
  • 2
  • 3
  • 4

description

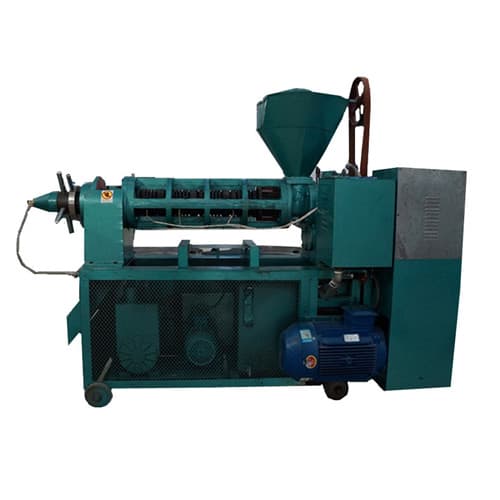

Combined Oil Press




automatic temperature controlled combined oil presse, with electric heating device and a circulating water cooling system to control oil press chamber temperature, so as to achieve constant temperature for extracting oil, keep pressing chamber pressure stable (according to different oil, pressing chamber temperature maintained at 120-140 degrees C), avoid the temperature too high during long time work, the protein degeneration, material coking, so the oil yield is improved, and a variety of vitamins, fatty acids, minerals, trace elements and nutrients could be intact. At the same time, the cake utilization value ,the degree of intelligence and automation are improved.


Below features are based on oil plants with above average quality smoothly and continuously squeezed after good pretreatments, such as screening, husking, flaking and cooking, etc.



Oil Plants

Processing Capacity(t/24h



Oil content of

Dry cakes

(%)



Oil yield

efficiency

(%)

Electricity consumption(kW·h/t)

Rapeseed

≥7.0

≤7.0

≥82

≤40

Cotton seeds

≥7.0

≤6.5

≥77

-

Soybean

≥6.0

≤6.0

≥67

≤56

Groundnut

≥7.0

≤7.0

≥92.3

≤39








Item

AHZY120SLWZ

Revolving speed of spiral axis (r/min)

37-45

 Power of main electromotor (kw)

11-15

Electrical power of filtration (kw)

2.2



Power for temperature controlling (kw)

1.5

Power of cooling system (kw) 0.12-0.16

Measurement (mm)

2420*1765*1940

Weight (kg)

1280




1. Inner packing: Plastic film
2. Outside packing: container/wooden box
3. Shipping: by sea in QINGDAO port or according to your demand
