Continuous Double-layer Carbonization Furnace

description

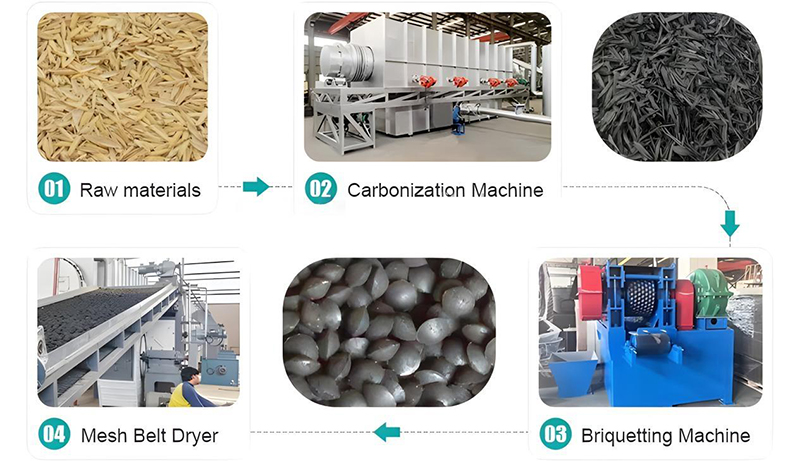

Biomass two-layer continuous drum carbonization machine is a special carbonization equipment which can carbonize coconut shell, walnut shell, apricot shell, hemp pole, sawdust, sawdust, rice husk, bamboo, eucalyptus, mushroom residue, medicine residue,coffee ground residue, palm shell, peanut shell and sunflower seed shell in the carbonization machine under high temperature conditions.

The carbonization machine adopts the advanced technology of recovery, purification and circulating combustion of carbon monoxide, methane, ethane and other combustible gases produced in the process of carbonization. It solves the problem of environmental pollution caused by thick smoke which produced by ordinary carbonization furnace in the carbonization project, and solves the heat energy problem required by the equipment, fully realizes self-sufficiency, and improves the continuity and economy of the equipment We should make full use of the agricultural and forestry residues to turn waste into treasure and contribute to the greening environment.

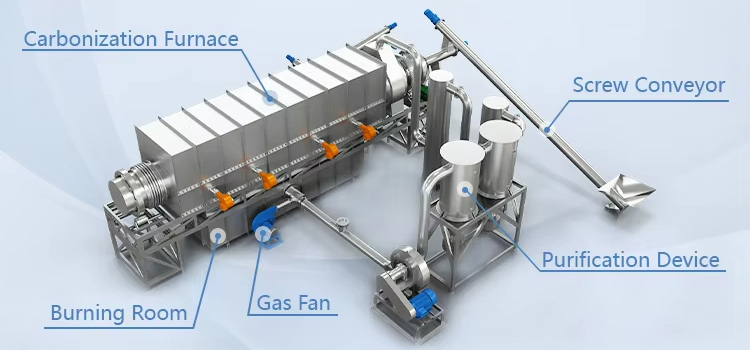

1. Configuration the early stage of the new type gasifier gasification;
2. Configuration of flue gas purification, heat exchange system, cooling system, heat steam into water, flue gas can be converted to gas recycling;
3. Configuration frequency conversion feeding machine, automatic feeding, feeding speed is adjustable;
4. Configuration rotary carbonation host, meet the production requirements;
5. Configuration cooling discharging machine cooling products, output, product;
6. Configuration control cabinet, temperature, speed regulation, drum PLC automatic control cabinet, the equipment for carbonized color display, production status should be clear;



Double-layer Rotary Charcoal Making Machine
Model	Capacity (kg/h)	Power (kw)	Dimension (m)	First Layer Diameter(mm)	Second Layer Diameter(mm)	Drum Length（m）
TJ1410/2	400-500	30-40	11*1.5*2.5	800	1400	10
TJ1610/2	600-800	40-50	11*2.0*2.8	1000	1600	10
TJ1810/2	700-1000	50-70	11*2.2*3.0	1200	1800	10
TJ2010/2	1100-1300	70-80	11*2.5*3.3	1400	2000	10
TJ2312/2	1500-2000	90-110	13.5*2.8*3.6	1600	2300	12
TJ2512/2	2200-2500	110-130	13.5*3.0*4.0	1800	2500	12
TJ2912/2	2700-3000	130-150	13.5*3.5*4.5	2200	2900	12
TJ3212/2	3300-3800	160-180	14.0*3.8*5.0	2500	3200	12
TJ3612/2	4000-4500	200-230	14.0*4.2*5.5	2900	3600	12
Note: The price above is just for reference, please feel free to contact us if you want to know more about different models or production lines. We can offer free customized proposals.

It is suitable for carbonizing coconut shell, cashew husk, walnut shell, apricot shell, hemp pole, sawdust, rice husk, bamboo,eucalyptus, mushroom residue, medicine residue, coffee residue, palm shell, peanut shell, etc.
