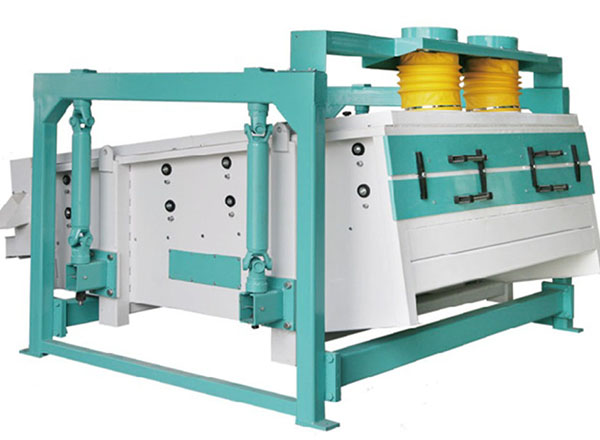

High efficient grain rotay vibrating plansifter
Mainly used for screening and separating large, medium, small and light impurities in grain.Can be connected to the vertical air suction separator or air recycling aspirator .Widely used in rice milling, flour milling, oil, feed, food and chemical industry,it mainly design for granular material cleaning.
Used for cleaning and grading of granular materials, to remove big and small impurities
High efficiency, excellent design, durable working life
The sieve screen is easy to replace and simple to operate
Screen hole is not easy to plug, and no leakage of dust
AHXZS Series of high-side screen is a kind of special product. It has been approved by many years’ applications of grain processing industries at home and abroad that high-side screen is the ideal equipment in cleaning section.
Main parameter:
Model | Pre-cleaning Capacity
(T/H) |
Cleaning capacity
(T/H) |
Sifting area
(m2) |
Rotary speed
(R/Min) |
Power
(KW) |
G. W
(KG) |
Out diamention
L*W*H(m) |
AHXZ150*250 | 50 | 30 | 3.75 | 320 | 3 | 2800 | 2988*2200*2105 |
AHXZ200*250 | 60 | 50 | 5 | 320 | 4 | 3200 | 2988*2705*2105 |
AHXZ250*300 | 80 | 60 | 6 | 320 | 4 | 3500 | 3549*2705*2105 |
AHXZ250*350 | 120 | 80 | 7.5 | 320 | 4 | 3800 | 4105*2815*2102 |
