Product Description

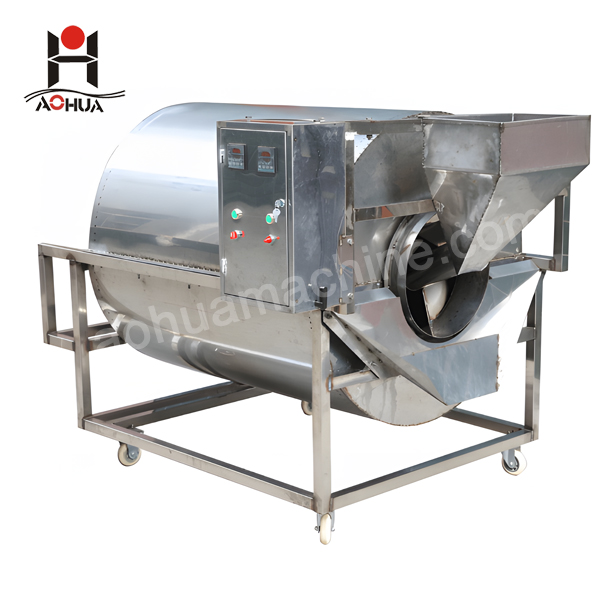

The semi-shaft electric frying pan produced by our factory is suitable for the pre-treatment of many kinds of oil materials before the hot pressing process. Supporting equipment, can also be applied to the food industry baking and processing technology. The main features are compact structure, good material moisture retention effect, easy to observe.

Technical parameters

Model Drum diameter
(mm) Capacity
(Kg/h) Power (Kw) Speed
(r/min) Effective volume
(Kg/time) Outline Size

YDCZ80BZ 800 150-200 1.5 15-25 50-70 1930x1120x1342

Working Principle

The electric heating pot body is used to transfer heat energy to the oil. Under the constant rotation and turning of the cylinder body, the oil gradually increases the temperature and plasticity, the water evaporates, and the protein is denatured. The viscosity of the oil is reduced and exposed, making it more conducive to oil extraction by pressing.
