description

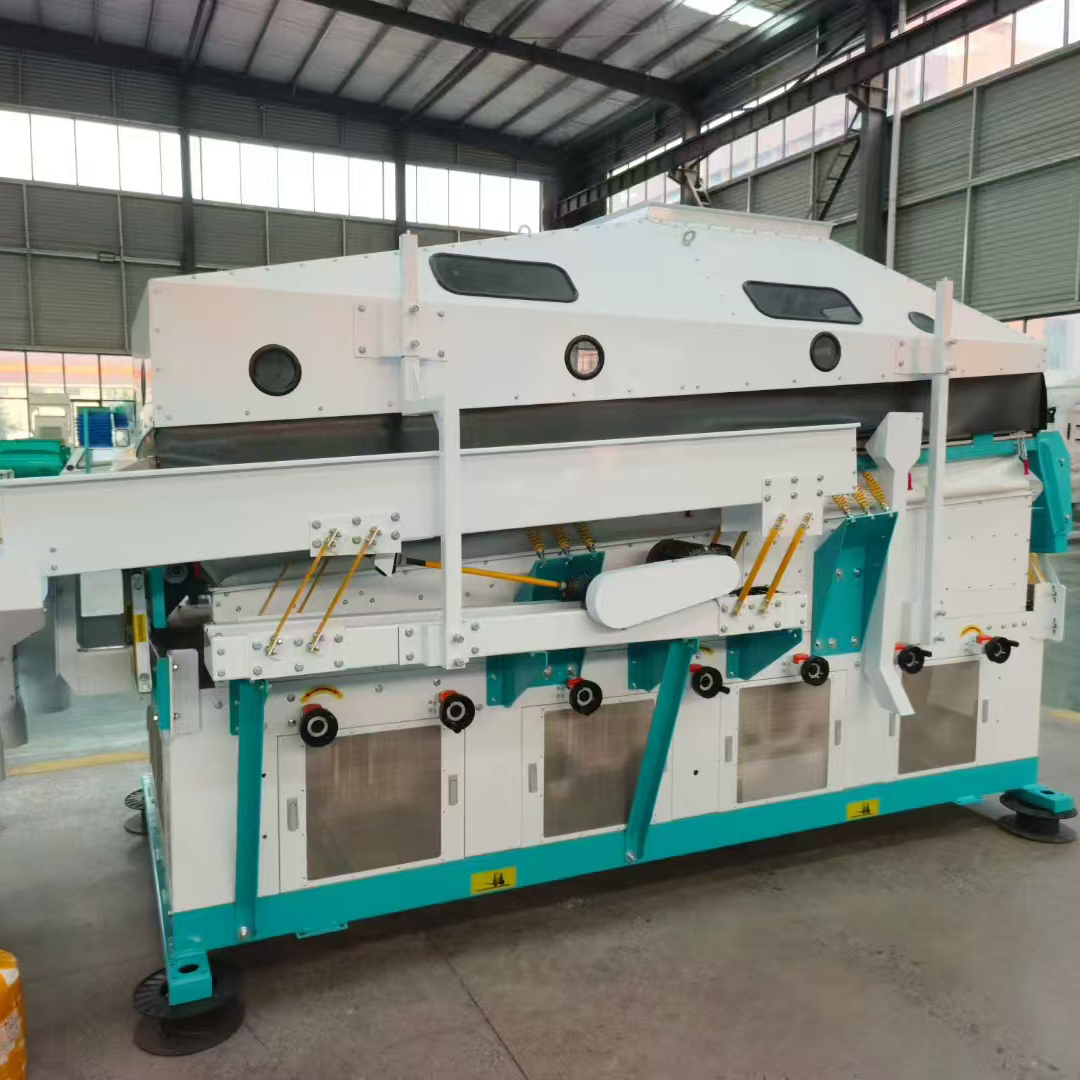

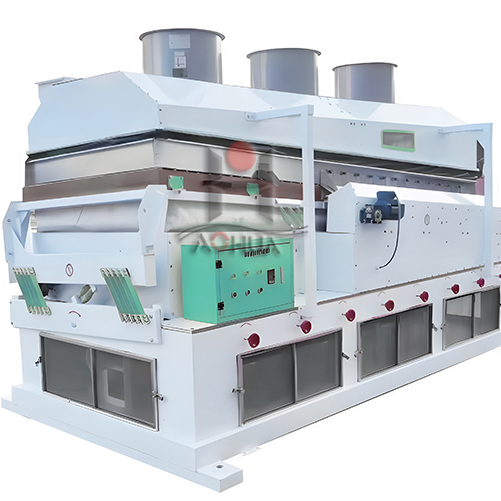

The gravity separator is one of the key equipment for seed cleaning and grading. It is a device that separates lighter seeds from heavier seeds based on the principle of seed suspension and friction characteristics. In addition to being used in the grain processing industry, the gravity separator is also an ideal equipment for cleaning and grading melon seeds, tea leaves, etc.
|
Model |
Size:L*W*H |
Rated Capacity(T/H) |
Selection Rate(%) |
Cleaning Efficiency(%) |
Powder(KW) |
Screen Area(㎡) |
|||||
|
L |
W |
H |
Light |
Heavy |
Fan |
Vibration |
Discharging |
||||
|
5XZ-3 |
2050 |
1350 |
1200 |
3 |
≥98.5 |
≥95 |
≥90 |
4.5 |
0.75 |
0.75 |
1.64 |
|
5XZ-5 |
3840 |
2110 |
1710 |
5 |
≥98.5 |
≥95 |
≥90 |
6 |
2.2 |
0.75 |
3.4 |
|
5XZ-10 |
4300 |
2300 |
2500 |
10 |
≥98.5 |
≥95 |
≥90 |
9.9 |
4 |
1.1 |
5.36 |
1.Density stratification: through the combination of vibrating screen bed and airflow, light impurities (such as rice husks, empty grains) float up, heavy impurities (such as stones, metals) sink, and healthy grains are in the middle.
2.Multiple parameters are adjustable: wind speed, screen surface inclination, amplitude, etc. are adjustable to meet the sorting needs of different grains (wheat, rice, beans, etc.).
3.High precision: particles with density difference ≥ 0.1g/cm³ can be separated (such as moldy grains in wheat have a low density).
4.Large processing capacity: The processing capacity of a single machine can reach 1-20 tons/hour (depending on the model), which is suitable for large-scale processing.
5.Multi-layer screen surface: The inclined screen bed is combined with a vibration motor to strengthen the automatic stratification and separation of materials.
6.Intelligent control: Some models are equipped with PLC system to monitor the sorting effect in real time and automatically adjust parameters.
7.No chemical additives: Pure physical sorting to ensure food safety.
8.Low rice breakage rate: Flexible vibration design reduces grain breakage, especially suitable for rice and seed processing.
1. Inner packing: Plastic film
2. Outside packing: Container/Wooden box
3. Shipping: By sea in QINGDAO port or according to your demand
