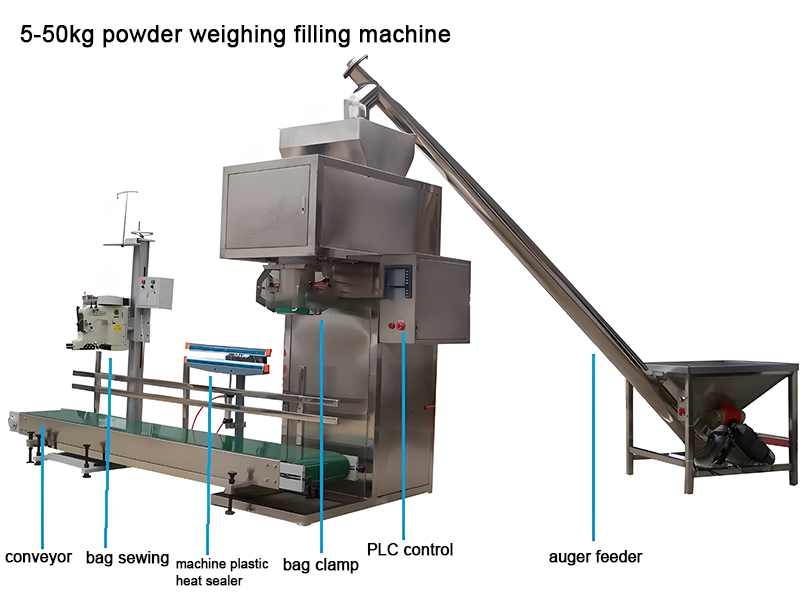

5-50kg Powder Packaging Machine

description

The packaging unit of this series is mainly composed of automatic weighing and packing machine, conveying device, suture device and feeding machine. The fast, medium and slow speed screw feeding method has the characteristics of high precision, fast speed, convenient operation and no dust pollution. Applicable to chemical industry, medicine,food industry. Such as raw materials, flour, milk powder, starch, additives, fertilizer, feed, new building materials and other powder materials.

-  Adopt whole stainless steel production process.
- LCD touch screen, PLC control technology, simple operation.
- Unique Broken arch structure,To prevent spiral feed stock appear material caking built on stilts.
- The weighing control system is designed according to the requirements of ip54 (dust proof and waterproof).
- Independent suspension sensor, signal transmission stability, ensure the weighing accuracy.
- Solve the same kind of product pneumatic clamps too open the material bag landing powder overflow, turn over the bag phenomenon.

Name	5-50kg Powder Packaging Machine
Model	AH-DGS-10F	AH-DGS-50F	AH-2DGS-50F
Metering range	2-10kg	5-50kg	5-50kg
Packaging accuracy	0.195	0.195	0.195
Filling speed	3-10bag/min	3-8bag/min	6-16bag/min
Filing way	single spiral	single spiral	double helix
Air pressure/Gas consumption	0.6Mpa/1m³	0.6Mpa/1m³	0.6Mpa/1m³
Voltage Power	AC380V/50HZ/1.7KW	AC380V/50HZ/2.5KW	AC380V/50HZ/4.7KW
Machine size:mm	L*W*H:600*1400*2200	L*W*H:950*1500*2500	L*W*H:1900*1500*2800

Suitable various kinds of powder packing special material can sent sample to test machine.

1. Inner packing: Plastic film
2. Outside packing: Container/Wooden box
3. Shipping: By sea in QINGDAO port or according to your demand
