Z Type Bucket Elevator

description



Z Shape Bucket Elevator suits for conveying many kinds of products.Such as rice, sugar, beans, fruits, granulate, vegetables, metal or plastic components, medicine, herbs, chips, grains, biscuits, meat, fish and so on.

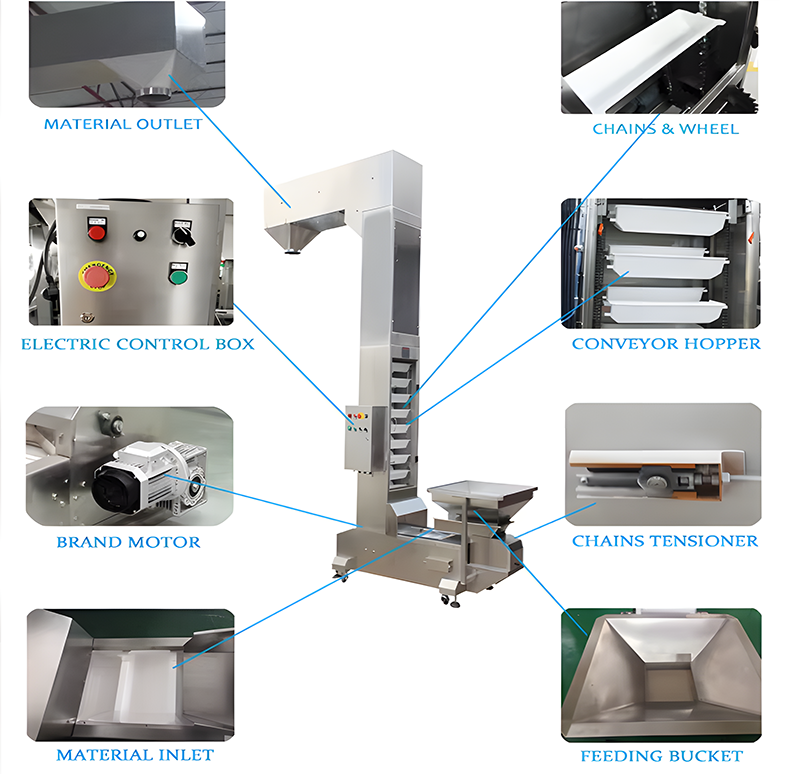

For the lifting machine, the hopper is driven by the chains to lift. It’s used for vertical feeding of grain or small block material. It has advantages of large lifting quantity and height.



We have the smooth and dimpled surface buckets, they can be 1.8L or 4L.We also can do stainless steel buckets.

This elevator assembling is very easy, we already make the mark on the parts, so just assemble them according to the marks will be ok. And only 2 wheels need to assemble on the elevator, they are all at the turning corners.

-  Multipoint feeding and multipoint unloading: The Z type bucket elevator can customize multiple feeding ports or feeding ports according to the actual lifting needs to meet the needs of multiple silos or multiple feeding ports, and can easily connect with various types of feeding equipment.
- High efficiency: It can be designed according to the customer's site. The horizontal length is 1.2 meters to 40 meters, and the vertical height is 1.5 meters to 50 meters. The double-machine parallel method can be used for those above 30 meters, which is suitable for the process needs of different industries.
- Zero damage rate: Since the material slides into the hopper, it is not forced to scrape, so the material will not be broken.
- Food grade requirements: The hopper is made of food grade reinforced polypropylene and is one piece molded to withstand temperatures from -10 to 120 degrees Fahrenheit.
- Sealing structure: The shell of the whole machine is closed, and the material leaks less during the operation of the machine, and at the same time, the flying of dust is reduced, which meets the requirements of environmental protection.
- Small footprint: Because of its flexible and changeable composition, compact body and horizontal-vertical-horizontal conveying method, Z type elevator greatly reduces the situation that the equipment occupies a large area.

Machine frame	Good quality 304 stainless steel or carbon steel
Bucket material	ABS or PP plastic or 304 stainless steel
Bucket size	1L,1.8L or 4L ,6L for choose (standard is 1.8L, different size price different)
Speed	Controlled by inverter, adjustable
Max speed	90 buckets/min
Working capacity	3-8M3/H
Lifting height	3.6m standard height or other size customized
Chains	Good quality 304 stainless steel or carbon steel
Outlets	1/2/3/4/5/6 or others
Ce certificate	Yes
Voltage	110V or 220V single phase or 380V 3phase, 50HZ/60HZ
Power	750W

The top of the two endless chains is full of hoppers, and the hopper scoops up the material from the storage below. When the motor drives the chain to rotate, the material is lifted to the top with the conveyor chain,
and the material is lifted and transported to the designated position for unloading. Its running trajectory is horizontal conveying first, then vertical lifting, and then horizontal conveying, similar to the letter Z.


It is used for conveying powdery, granular and small pieces of materials. At present, it is mostly used for the feeding of weighing packaging machines, the feeding and re-feeding of color sorters, and the three-dimensional cycle feeding and unloading of automatic production lines.


1. Inner packing: Plastic film
2. Outside packing: Container/Wooden box
3. Shipping: By sea in QINGDAO port or according to your demand
