description

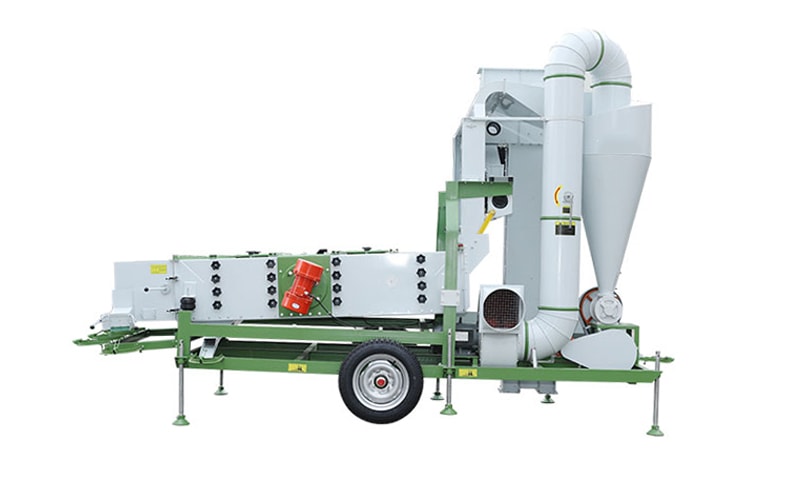

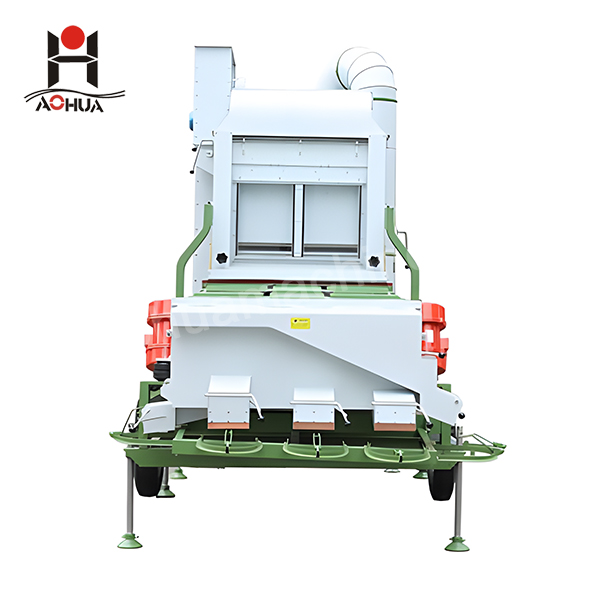

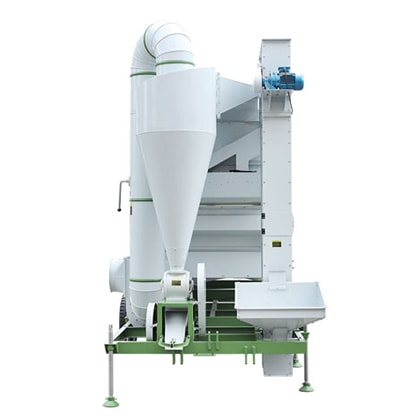

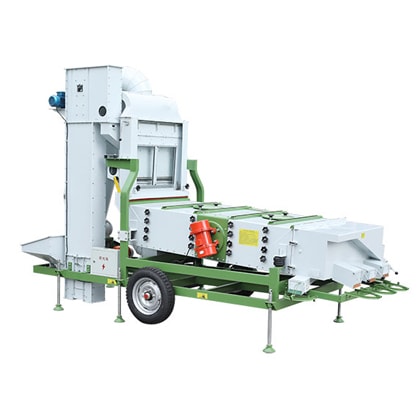

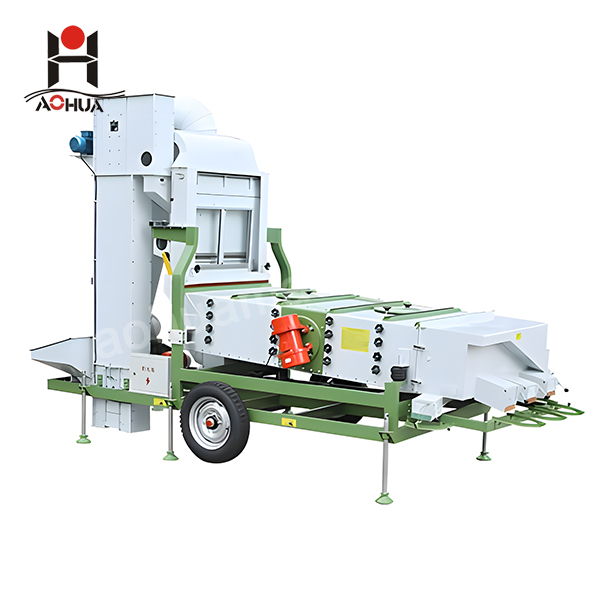

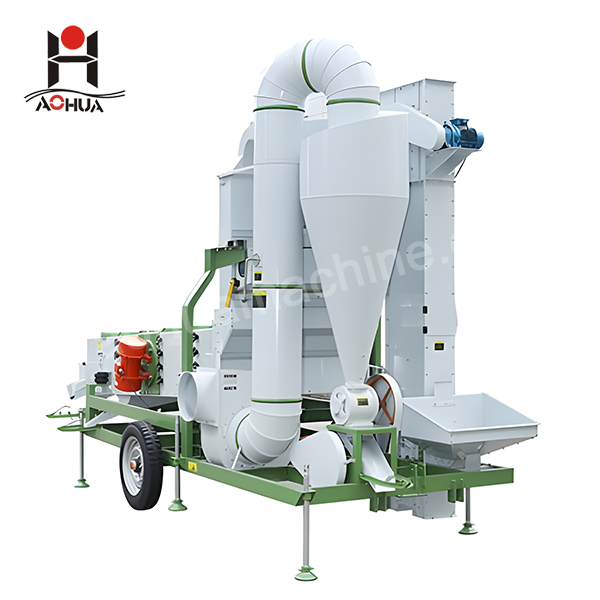

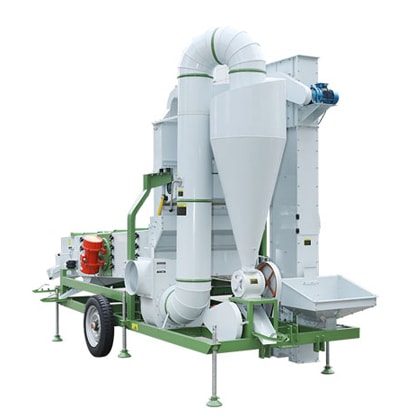

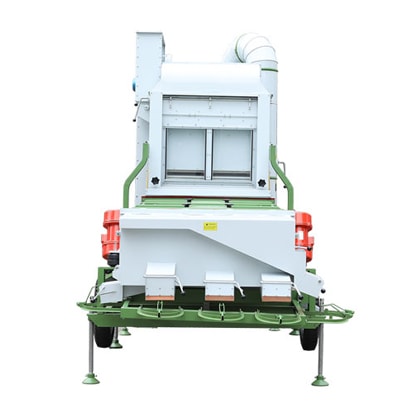

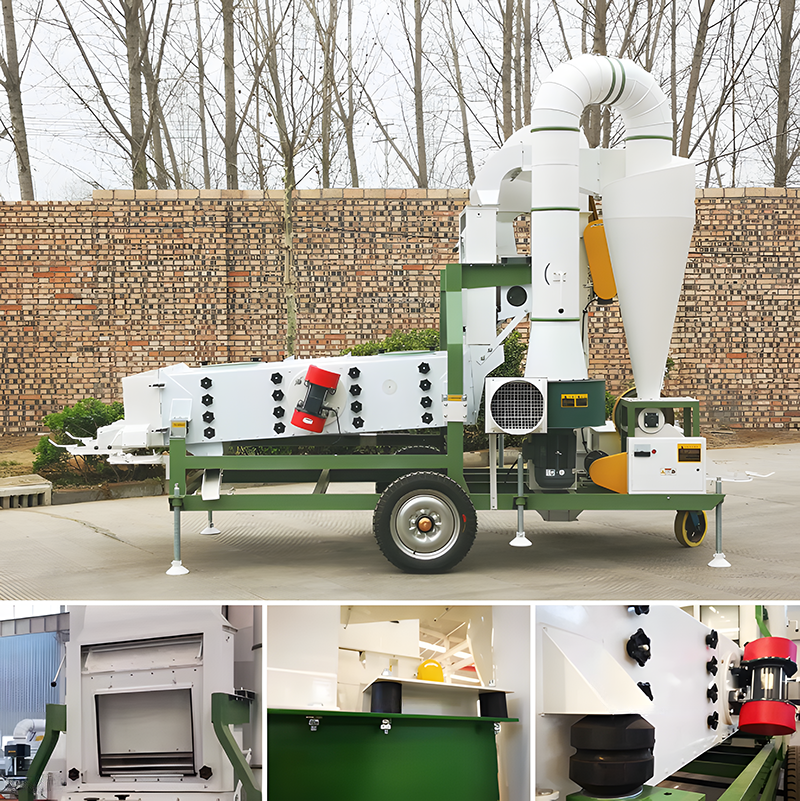

air screen cleaner

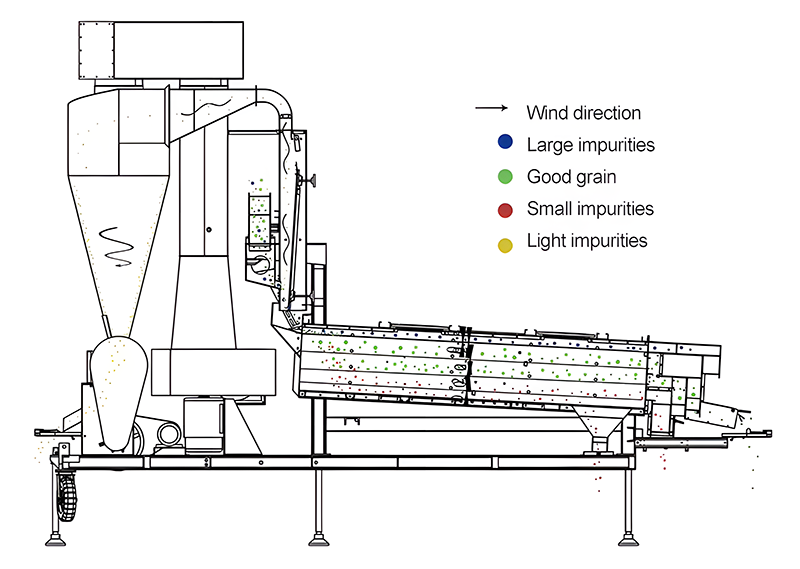

It can clean light impurities through vertical air screen and the vibration sieve can clean big and small impurities.

The material can be classified into big, medium and small particles with different layers of sieves.

It is widely used in seed processing and agricultural product processing industry.


NAME MODEL LAYER SIEVE SIZE (mm) CAPACITY (t/h) POWER (kw) WEIGHT (t) OVERALL SIZEL x W x H(mm)

5XFS-7.5B THREE 1250×2400 7.5 8.5 1.82 5100×2050×3430
5XFS-7.5C FOUR 1250×2400 7.5 8.5 1.86 5100×2050×3430
5XFS-10B THREE 1500×2400 10 10.5 2.01 5100×2300×3600
5XFS-10C FOUR 1500×2400 10 10.5 2.06 5100×2300×3600
5XFS-10D FIVE 1250×2400 10 7.75 2.56 3840×1880×4290

5XFS-7.5BS THREE 1250×2400 7.5 8.5 1.85 5100×2050×3430
5XFS-7.5CS FOUR 1250×2400 7.5 8.5 1.89 5100×2050×3430
5XFS-10BS THREE 1500×2400 10 10.5 2.04 5100×2300×3600
5XFS-10CS FOUR 1500×2400 10 10.5 2.09 5100×2300×3600






1. Inner packing: Plastic film
2. Outside packing: container/wooden box
3. Shipping: by sea in QINGDAO port or according to your demand
