Circular Vibrating Screen

description

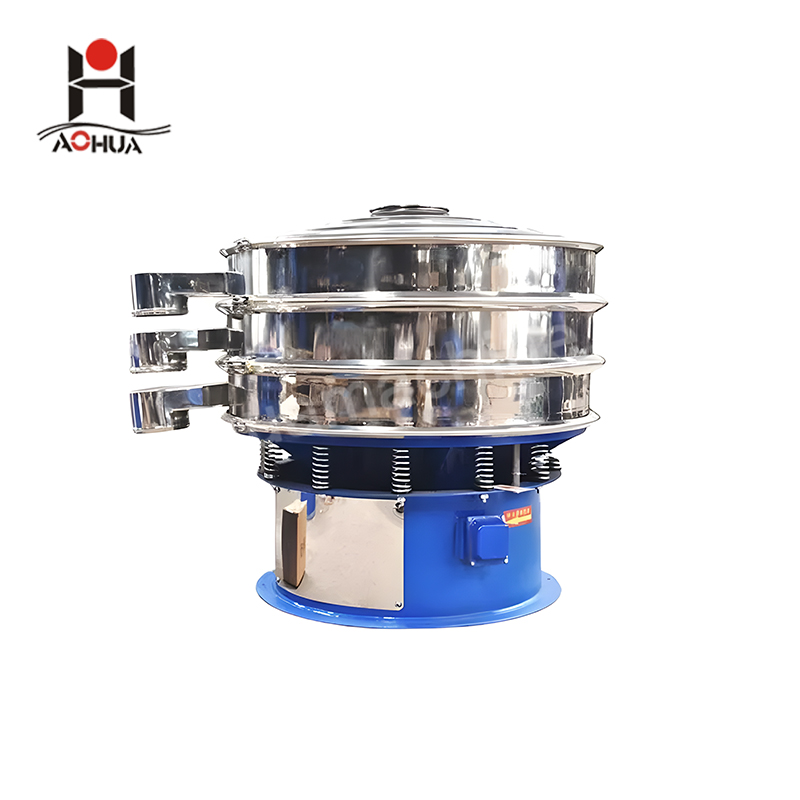

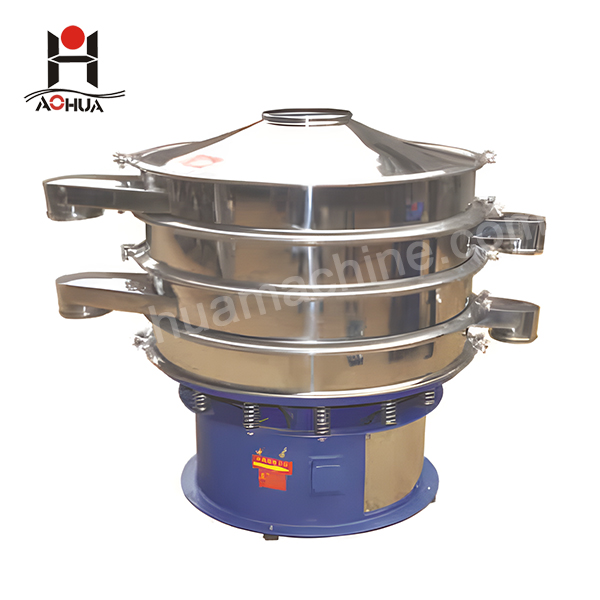

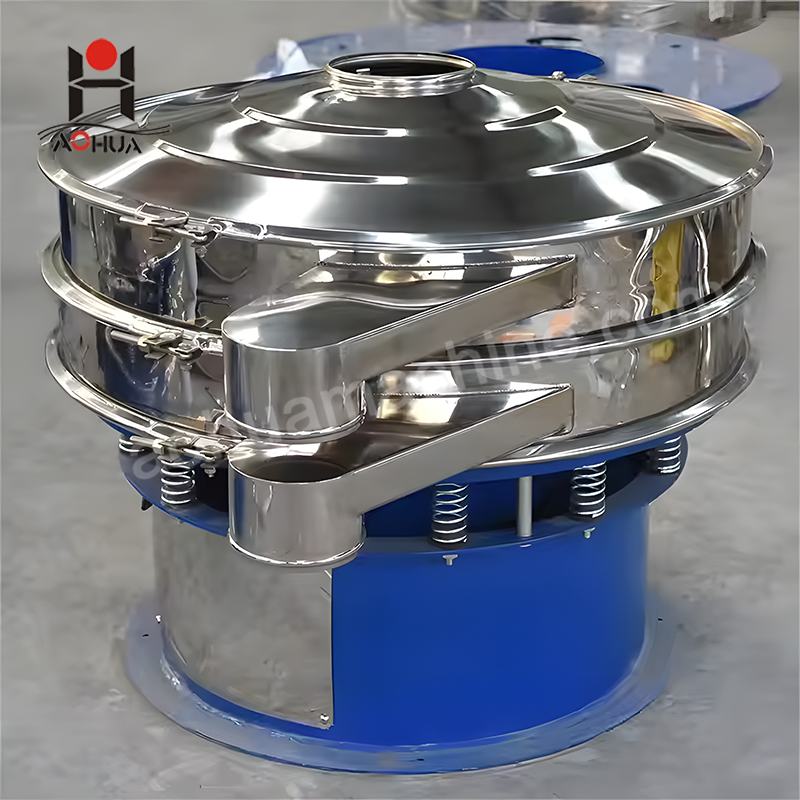

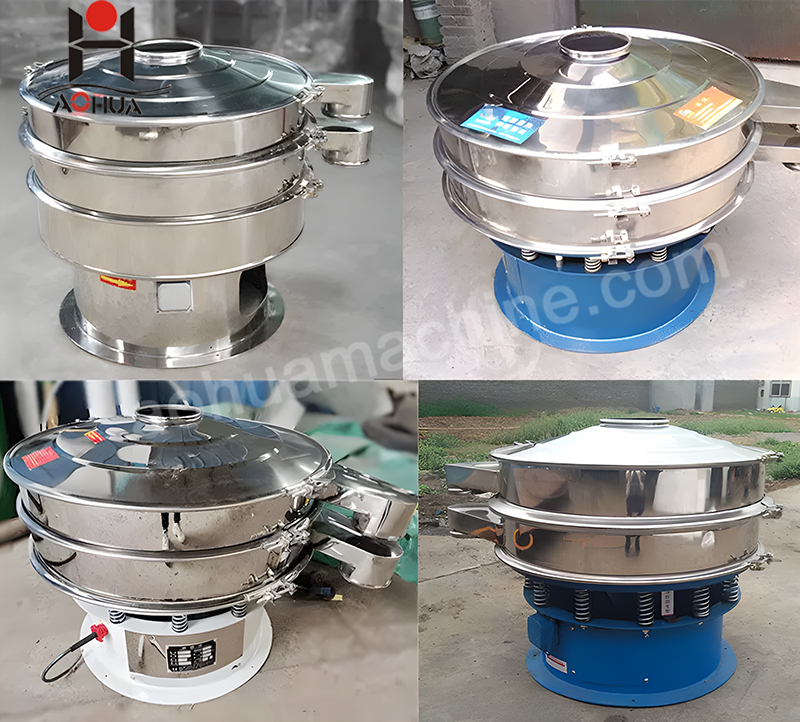

Circular Vibrating Screen

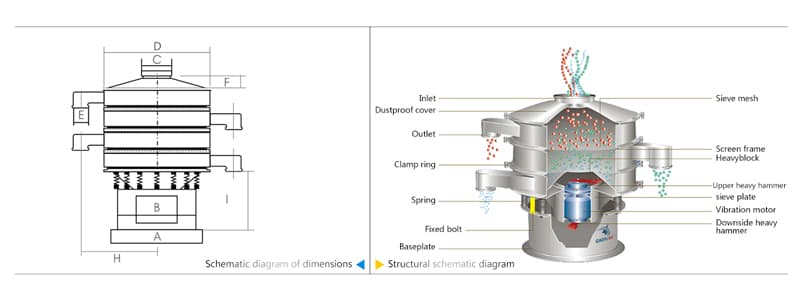

Rotary motion of the motor change into the horizontal, vertial and inclined sports through the installation of the ends of the weight on the vibration motor, and then transfer the motion to the surface of the screen, the trajectories of the meterial can be changed by changing the phase angle of the weight.

Model	AH-KSZP- 400	AH-KSZP- 600	AH-KSZP- 800	AH-KSZP- 1000	AH-KSZP- 1200	AH-KSZP- 1500	AH-KSZP- 1800	AH-KSZP- 2000
Diameter(mm)	Φ400	Φ600	Φ800	Φ1000	Φ1200	Φ1500	Φ1800	Φ2000
Effective area(m2)	0.13	0.24	0.45	0.67	1	1.6	2.43	3.01
Mesh	2-400
Material size(mm)	<Φ10	<Φ10	<Φ15	<Φ20	<Φ20	<Φ20	<Φ30	<Φ30
Frequency(rpm)	1500	1500	1500	1500	1500	1500	1500	1500
Power(Kw)	0.2	0.55	0.75	1.1	1.5	2.2	3	3
Height to 1st layer	605	605	730	810	970	1000	1530	1725
Height to 2nd layer	705	705	860	940	1110	1150	1710	1905
Height to 3rd layer	805	805	990	1070	1250	1300	1890	2085

1. The widest range of screening: applicable to all kinds of particles, poweder and slurry screening ans separation, Screeing particle size reaching 500-600 mesh and filter particle size can reach 5 microns.
2. The mesh not block: a variety of specially designed screen of the cleaning device make the probability of blocking the mesh approach the minimum.
3. Single layer and multi-layer separation: circular vibrating screen can choose 1-5 layers screen and can carry out the sorting of 2-6 gradeds. single layer filtration, once to achieve the requirements.

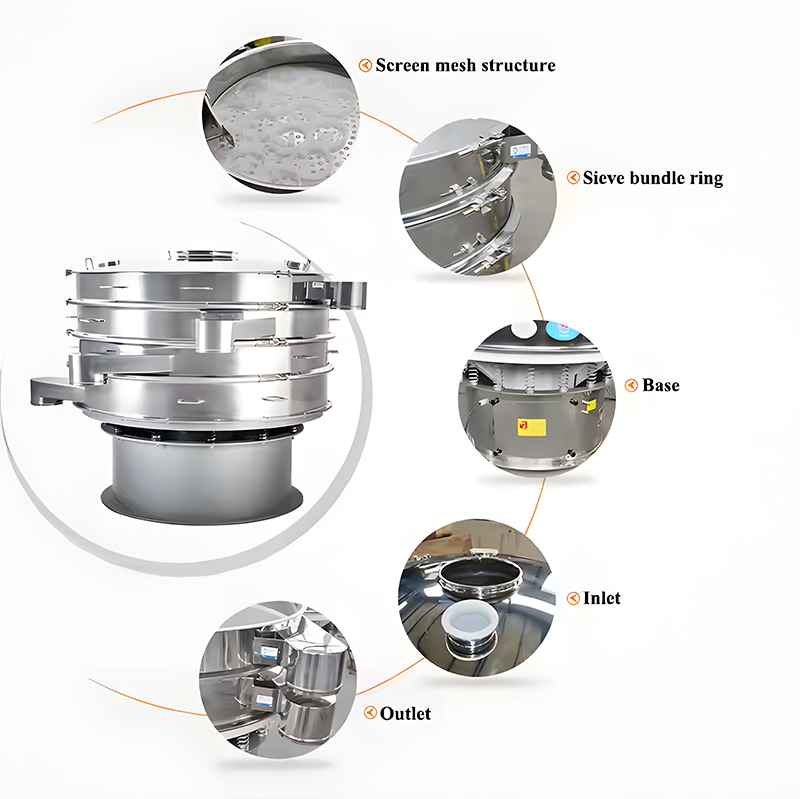

4. Easy to change the screen: circulair vibrating screen has many kinds of grid structure according to different needs, the time of changing screen is shorten to 3-5 minutes, which saves 30-60minutes comparing to other types, no deformation of the mesh, long service life of screen, high efficiency.


Application:
Food Industry、Pharmaceutical Industry、Meatllurgy and Mining Industry

Material:
Flour, starch, rice flour, milk powder, green tea powder, additives, condiments, yeast liquor, seriflux, protein liquid, soy milk, etc. Chinese medicine granules, Chinese medicine powder, pharmaceutical intermediates, Chinese Herbal Medicine, plant extracts, biological agents Metal, metallurgy powder: iron powder, aluminum powder, lead powder, copper powder, alloy powder, electrolytic copper powder, refractory material, steel shot, alumina, etc.

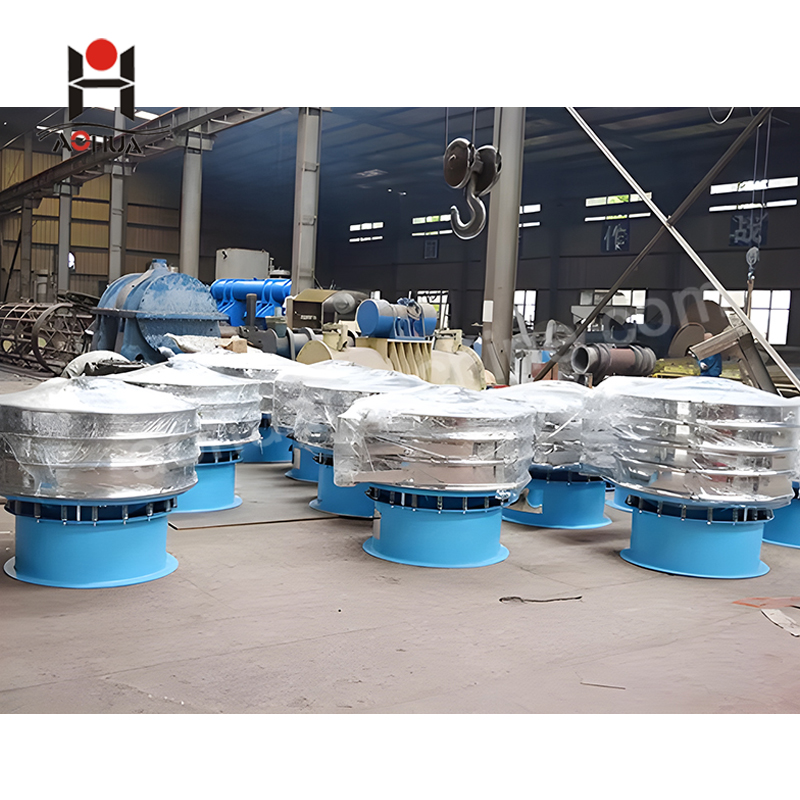

1. Inner packing: Plastic film
2. Outside packing: Container/Wooden box
3. Shipping: By sea in QINGDAO port or according to your demand
