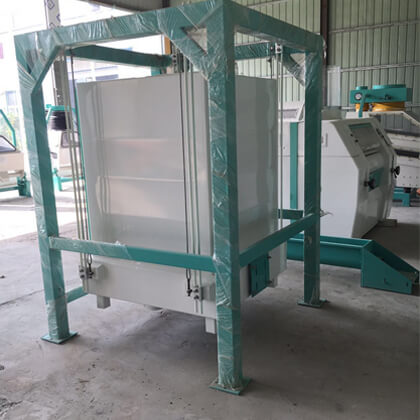

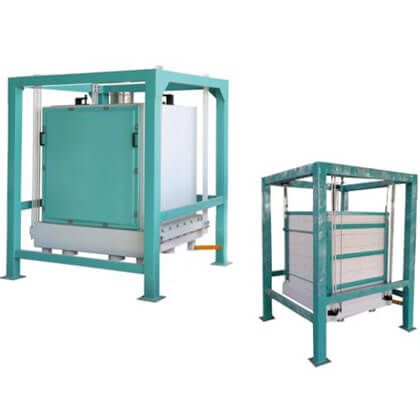

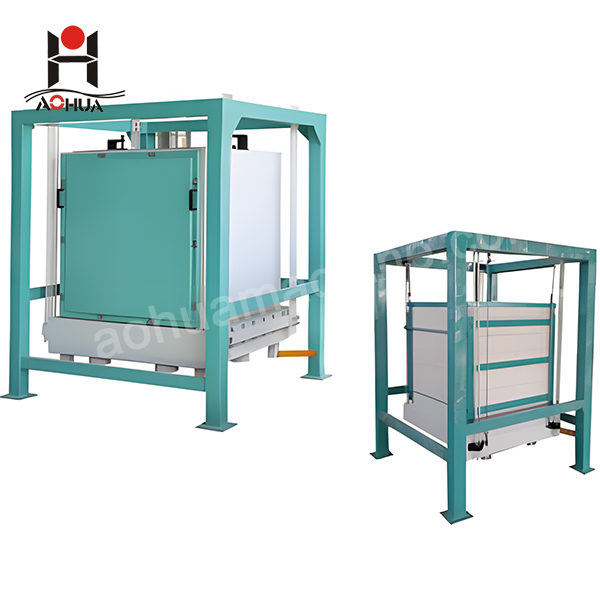

Closed Type Single Bin Plansifter

description

grain mill single bin plansifter

1.Application

It is mainly used in food processing plant, starch factory, milling plant and feed source.

2.Function

It is applied in the purification and grading of semolina and fine semolina in durum, soft wheat and corn mills. With muti- deck sieves, the plansifter grades, screens and sizes the mixing materials and gets the fine flour at the end of the flow.

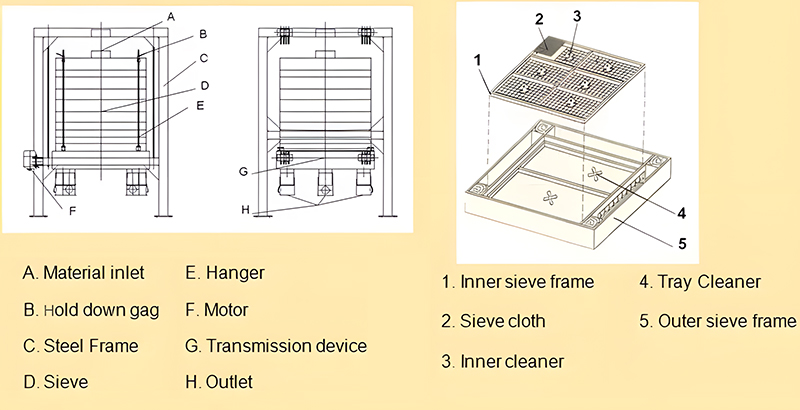

The machine is driven by a motor which installed underside of the main frame and counter-balanced by a counterweight. There are single section type, double sections and 4 sections type in this machine series. According to individual design for different material, the sieve sifts different granular materials to different next passages in flour mill when the whole machine is running.

Model	Sifting(m2)	Capacity(t/h)	Power(kw)	Rotation diameter(mm)	Weight(kg)	L*w*h(mm)
FSFJ1*10*83	4.5	2-4	0.75	50	470	1380*1280*1860
FSFJ1*10*100	7	3-6	1.1	50	570	1580*1480*1960
FSFJ1*10*120	9.8	6-10	1.5	50	800	1960*1890*2260
