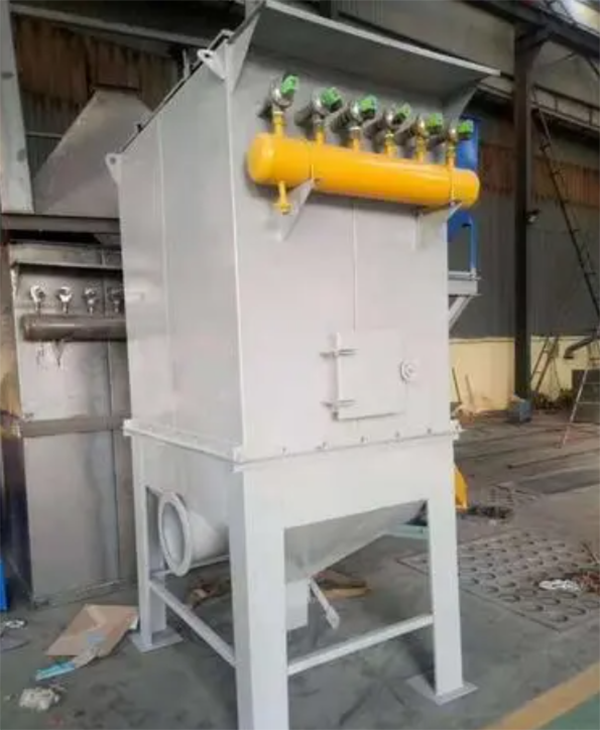

Bag Filter Type Pulse Jet Dust Collector For Rice Flour Mill
Bag Filter Type Pulse Jet Dust Collector For Rice Flour Mill can be widely used for air and dust separation operations of dust-containing air with a temperature lower than 80 degrees Celsius.
1. Filtering bags are self cleaning via rising air
2. There are high pressure jet filter and low pressure jet filter
3. Easy maintenance and cleaning because the removable cover
Contact US
Get Price
Share:
Content
Bag Filter Type Pulse Jet Dust Collector For Rice Flour Mill
Data
Type |
Sleeves length (mm) | Air Volume
(m³/h) |
Sleeves Area
(m²) |
Air lock
(kW) |
Dust Scraper
(kW) |
G. W
(Kg) |
TBLM-26 | 1800 | 3170-4220 | 17.6 | 1.1 | 1.1 | 850 |
2000 | 3530-4700 | 19.6 | 890 | |||
2400 | 4230-5640 | 23.5 | 960 | |||
TBLM-52 | 1800 | 6350-8470 | 35.3 | 1.1 | 1.1 | 1150 |
2000 | 7060-9410 | 39.2 | 1320 | |||
2400 | 8460-11280 | 47.1 | 1390 | |||
TBLM-78 | 1800 | 9520-12700 | 52.5 | 1.1 | 1.1 | 1540 |
2000 | 10580-14110 | 58.3 | 1780 | |||
2400 | 12600-16920 | 70.5 | 1800 | |||
TBLM-104 | 1800 | 12690-16920 | 70.5 | 1.5 | 1.1 | 1860 |
2000 | 14100-18810 | 78.4 | 2100 | |||
2400 | 16920-22560 | 94.0 | 2300 | |||
TBLM-130 | 1800 | 15860-21140 | 88.2 | 1.1×2 | 1.5 | 2350 |
2000 | 17640-23520 | 98 | 2680 | |||
2400 | 21150-28200 | 117.5 | 2860 | |||
TBLM-156 | 1800 | 19040-25390 | 105.8 | 1.1×2 | 2.2 | 2830 |
2000 | 21170-28220 | 117.6 | 3300 | |||
2400 | 25380-33840 | 141 | 3650 | |||
TBLM-168 | 1800 | 20500-27340 | 113.9 | 1.1×2 | 2.2 | 3180 |
2000 | 22790-30380 | 126.6 | 3520 | |||
2400 | 27340-36460 | 151.9 | 3850 |
