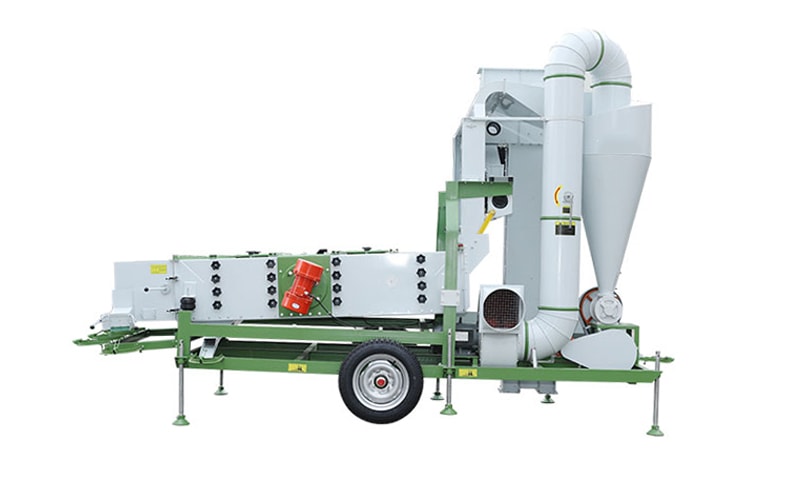

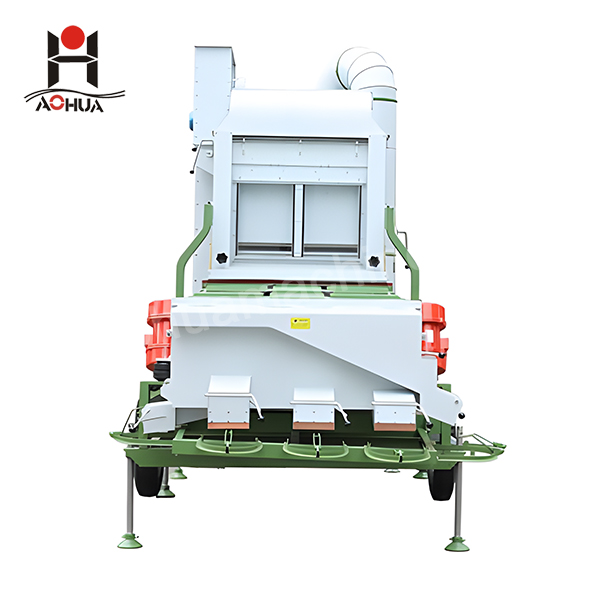

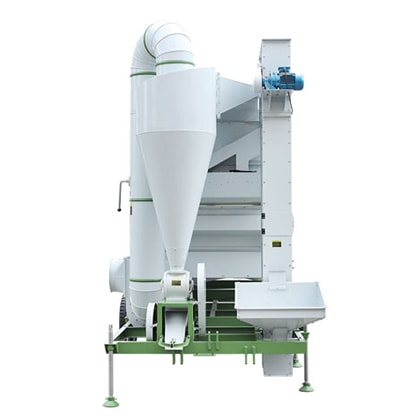

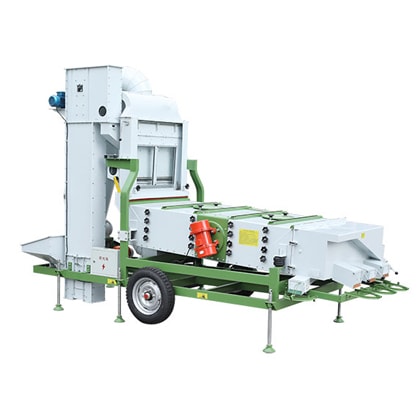

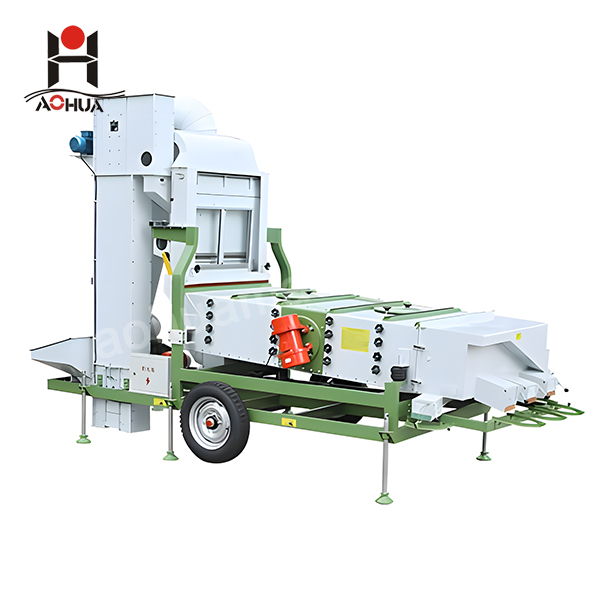

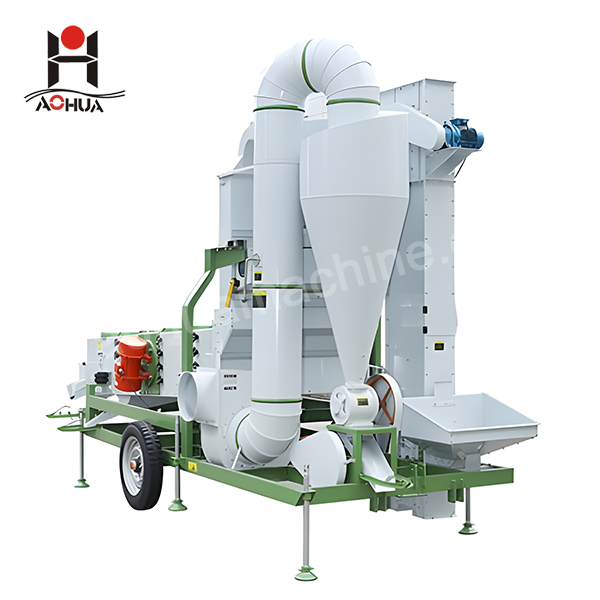

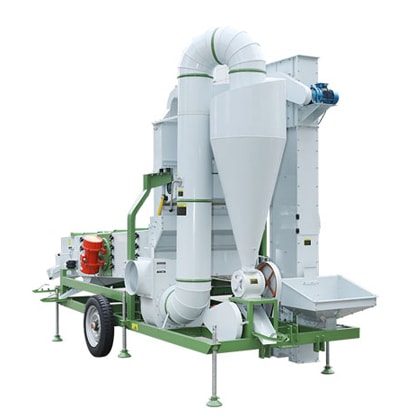

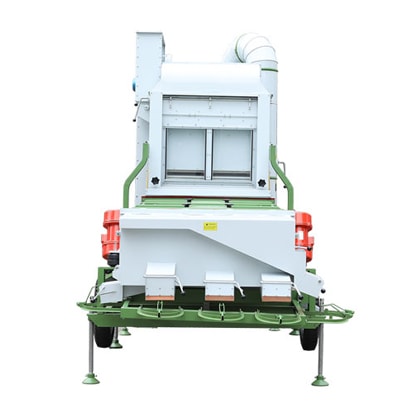

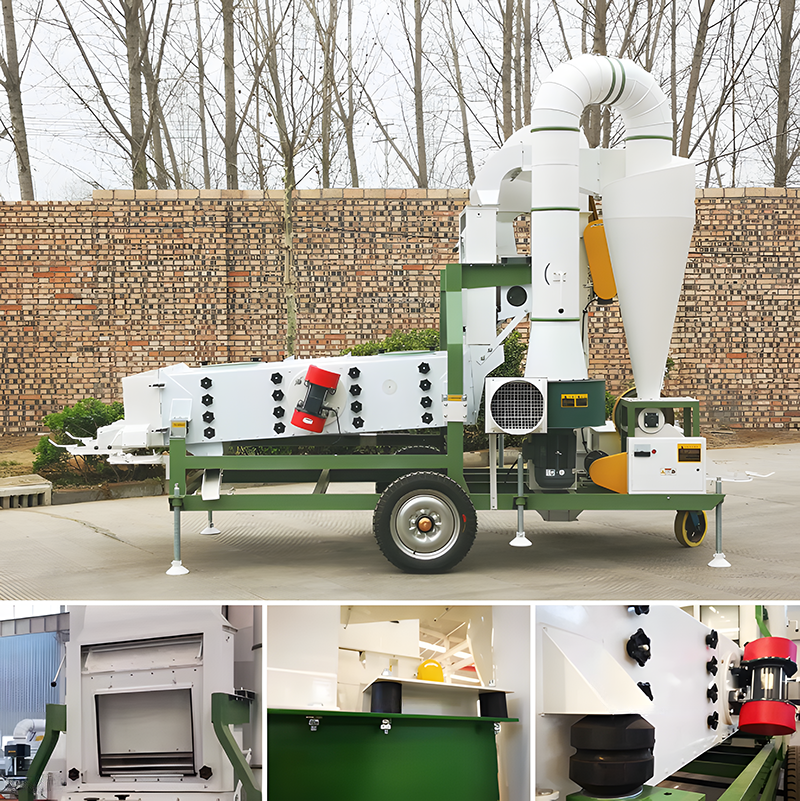

air screen cleaner

air screen cleaner

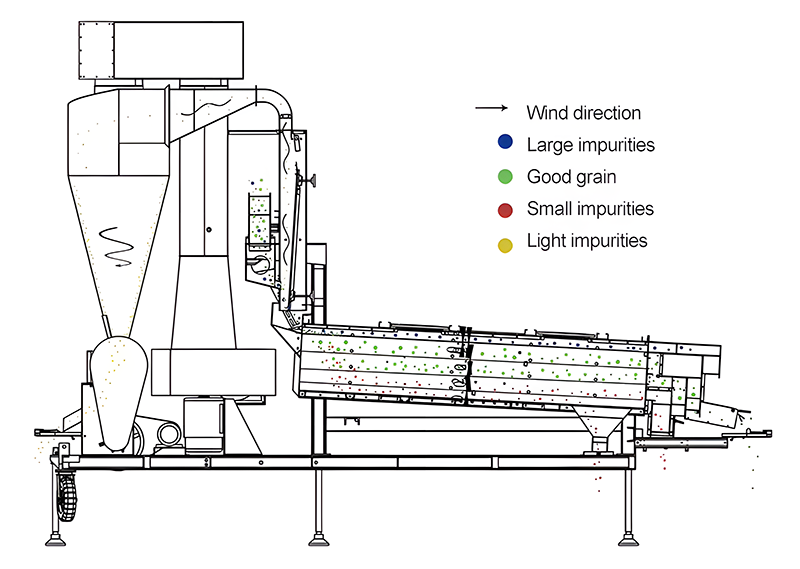

It can clean light impurities through vertical air screen and the vibration sieve can clean big and small impurities.

The material can be classified into big, medium and small particles with different layers of sieves.

It is widely used in seed processing and agricultural product processing industry.

NAME	MODEL	LAYER	SIEVE SIZE (mm)	CAPACITY (t/h)	POWER (kw)	WEIGHT (t)	OVERALL SIZEL x W x H(mm)
	5XFS-7.5B	THREE	1250×2400	7.5	8.5	1.82	5100×2050×3430
	5XFS-7.5C	FOUR	1250×2400	7.5	8.5	1.86	5100×2050×3430
	5XFS-10B	THREE	1500×2400	10	10.5	2.01	5100×2300×3600
	5XFS-10C	FOUR	1500×2400	10	10.5	2.06	5100×2300×3600
	5XFS-10D	FIVE	1250×2400	10	7.75	2.56	3840×1880×4290
	5XFS-7.5BS	THREE	1250×2400	7.5	8.5	1.85	5100×2050×3430
	5XFS-7.5CS	FOUR	1250×2400	7.5	8.5	1.89	5100×2050×3430
	5XFS-10BS	THREE	1500×2400	10	10.5	2.04	5100×2300×3600
	5XFS-10CS	FOUR	1500×2400	10	10.5	2.09	5100×2300×3600


1. Inner packing: Plastic film
2. Outside packing: container/wooden box
3. Shipping: by sea in QINGDAO port or according to your demand
