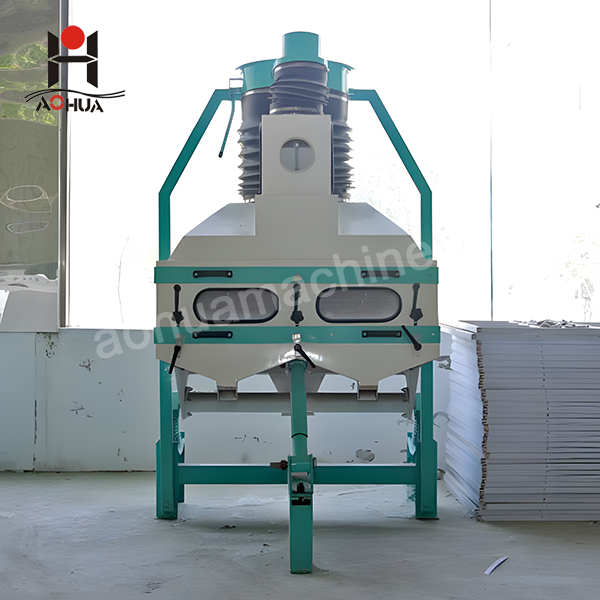

gravity grading destoner

Product Description
TQSF gravity grader & destoner works for continuous separation of stone from a stream of grain.TQSF gravity grader & destoner is widely used for grading and destoning of granular grains and seeds such as wheat, maize, peas, beans

We're here to help: Easy ways to get the answers you need.

SEND EMAIL GET PRICE
Share With:

Products list

inquery

  • Tel:+86 16627863527
  • Fax:+86 0371 26811388
  • Email:info@aohuamachine.com
  • Add:Chenliu, Xiangfu Distirct, Kaifeng City, China
contact us

hot products

  • 15TPD RICE MILL MACHINE

  • Maize Mill Equipment

  • Plansifter

  • Double Bins Plansifter

  • 1
  • 2
  • 3
  • 4

description

De-stonner



1) Function: remove stones and grade material
2) Application: free-flowing grains and seeds
3) Capacity: 1~22 t/h (based on wheat)

TQSF gravity grader & destoner works for continuous separation of stone from a stream of grain.TQSF gravity grader & destoner is widely used for grading and destoning of granular grains and seeds
such as wheat, maize, peas, beans, by density. Light impurities like grass seeds, slag, soil and dust can also be removed by air cleaning efficiently.
TQSF gravity grader & destoner machine is popular in seed cleaning line, grain processing plant and flour mill
cleaning section. If necessary, equip the machine with independent air suction ducts to meet the requirement of steadyand large air volume.


The material falls into the drip baffle (B) in the feed box through the feed inlet (A), and the material is evenly covered throughout the width of the screen due to machine vibration.
The upper sieve surface (C) is automatically stratifiedaccording to the specific gravity and particle size of the material under the combined action of vibration and air flow.

The light mass flow with a small proportion becomes the material on the upper sieve surface which is discharged out of the machine by the tail.Lighter grains, grains,
dust and other impurities are drawn away by the suction vent (D), and thesuction volume is regulated by the butterfly damper (E).

Larger proportion of the material and the sandstone, clay pieces fall on the lower surface (F), air flow and screen surfacefriction in vibration under the combination of material and sand,
clay pieces to the tail and head end mobile screen surface classification.The heavy material flows towards the tail of the screen.


Model Screen Width Capacity Air Pressure(pa) Air Volume (m3/h) Power  (kW) Frequency   (1/min) Wt.         Size                    (L *W*H)        (mm)
(cm) (t/h) (kg)
TQSF43 43 1-1.5 <980 3000 2×0.25 960 215 1270×700×1600
TQSF50 50 43500 <980 4000 2×0.25 960 230 1420×780×1800
TQSF60 60 43529 <980 4500 2×0.25 960 280 1450×876×1800
TQSF80 80 43592 <980 6000 2×0.25 960 340 1450×1046×1800
TQSF100 100 43655 <980 8000 2×0.25 960 400 1500×1246×1900
TQSF125 125 43719 <980 10200 2×0.25 960 500 1470×1496×1920
TQSF150 150 43783 <980 12000 2×0.25 960 600 1580×1746×1920
TQSF175 175 14-18 <980 15000 2×0.25 960 750 1470×1990×1920
TQSF200 200 16-20 <980 17000 2×0.25 960 1000 1470×2292×1920
TQSF250 250 20-22 <980 20400 2×0.25 960 1050 1470×2835×1920

Notes:
1. Machine can be converted to different cleaning programs, screens shall be changed accordingly.
2. Above technical data can vary due to continued development, or different machine configurations.


1. Inner packing: Plastic film
2. Outside packing: container/wooden box
3. Shipping: by sea in QINGDAO port or according to your demand
